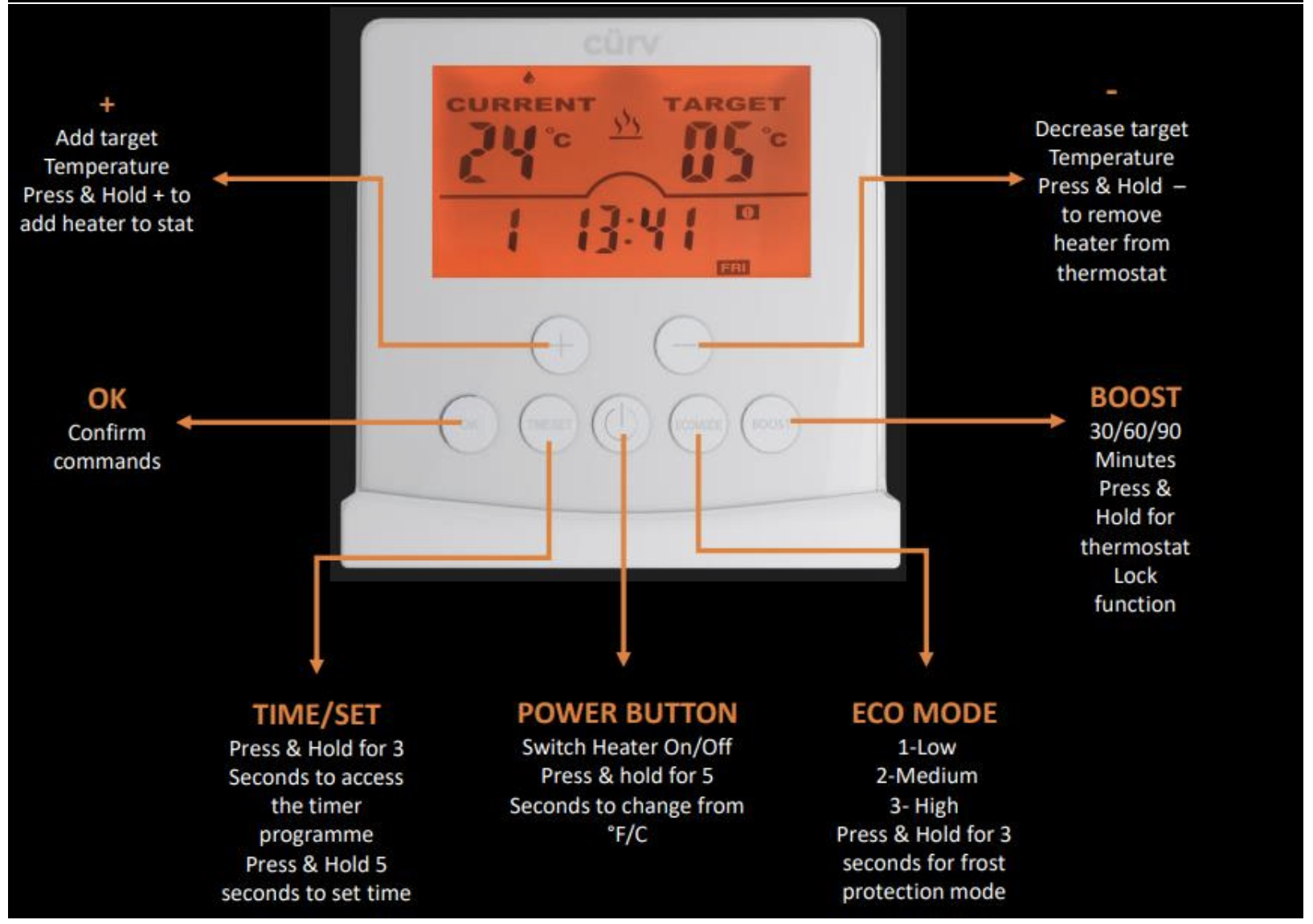

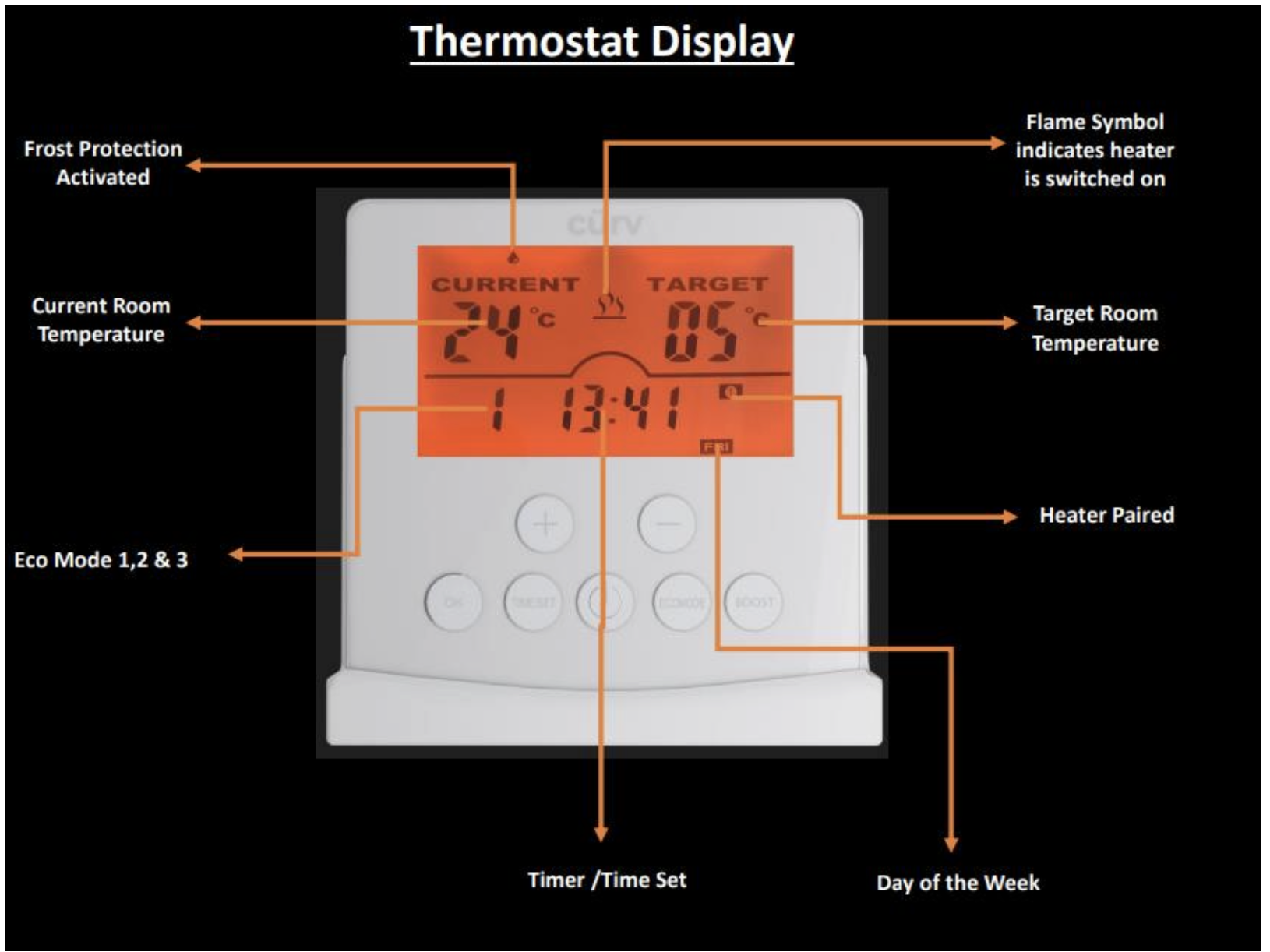

Thermostat Functionality

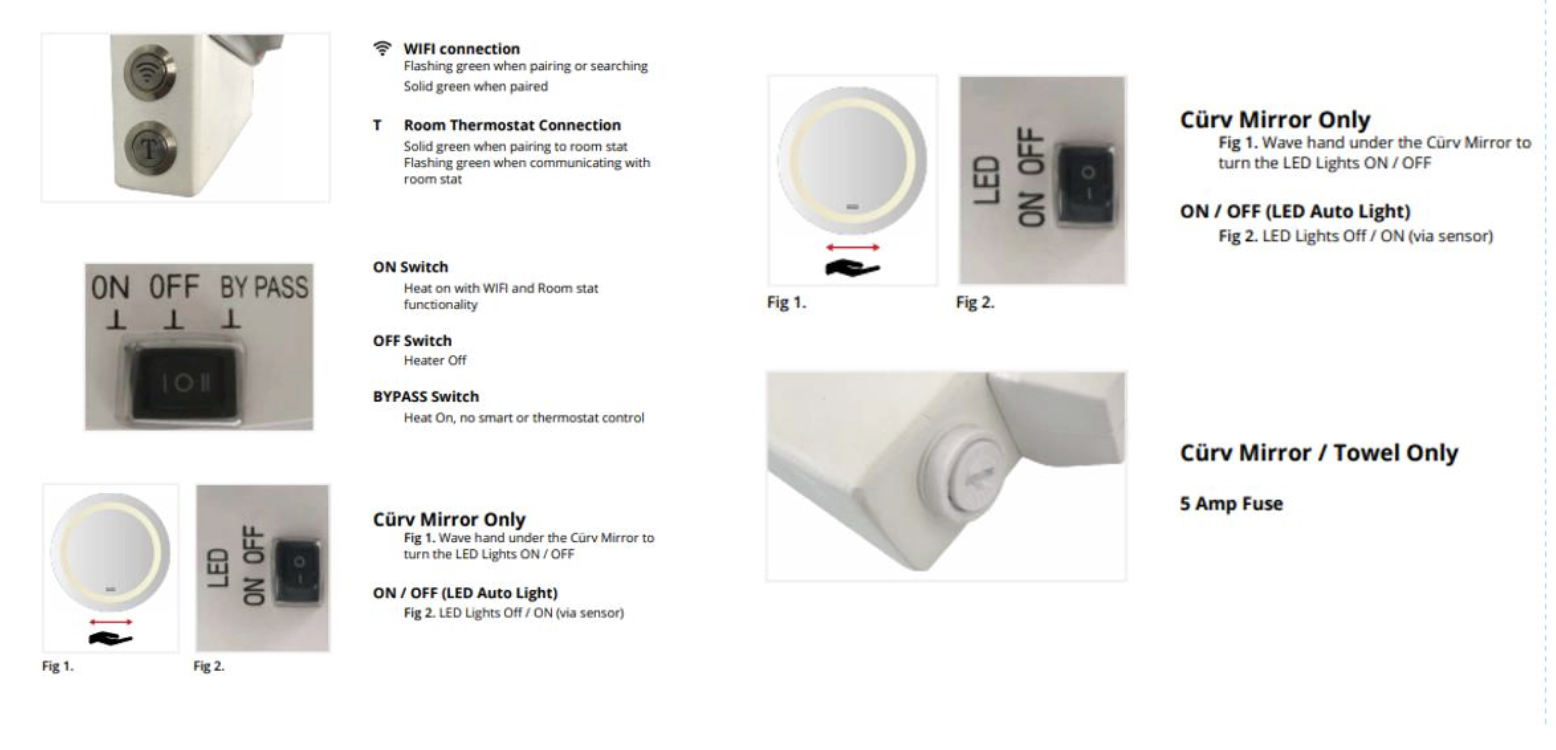

 To Add Heater to Thermostat

1.Power on the heater at the mains

2. Ensure the switch at the back of the heater is set to the ON position, do this before hanging the unit on to the wall.

3. At the base of the heater press and hold the button displaying the T shaped symbol until there is a solid green light, then promptly on the thermostat control press the +or- button this is to wake the thermostat.

 4.Once activated hold the + button for approximately 5 seconds until the number 1 flashes rapidly, then press and hold the + button for a second time to allocate the heater to this number.

5.Repeat step 1-3 to pair further heaters using numbers 2-8 on the thermostat

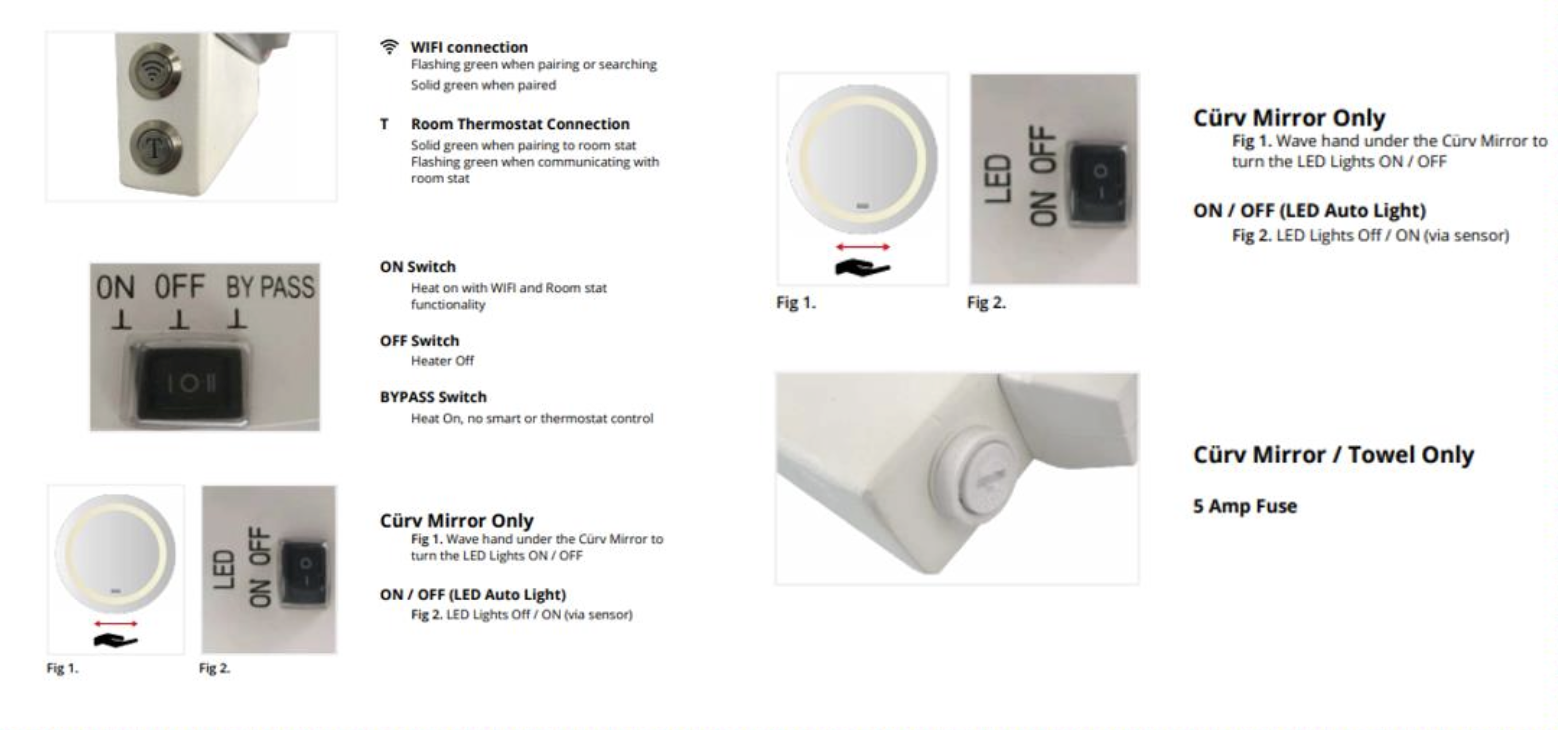

Heater Controls

 To Set Stat Time

Once one of the heaters on the stat is connected to the app, the stat time will automatically update

Heater Controls

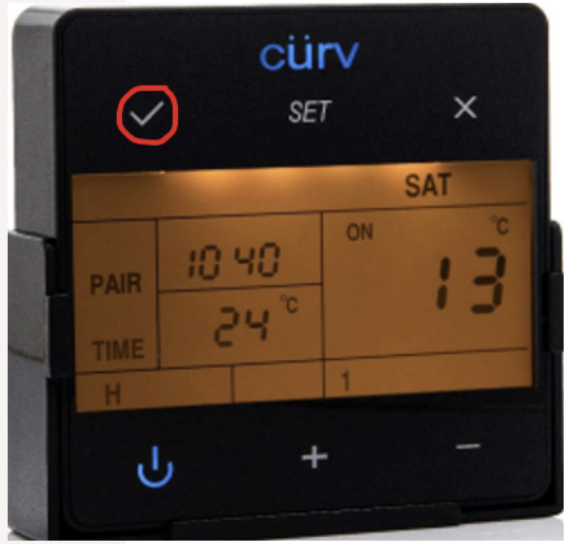

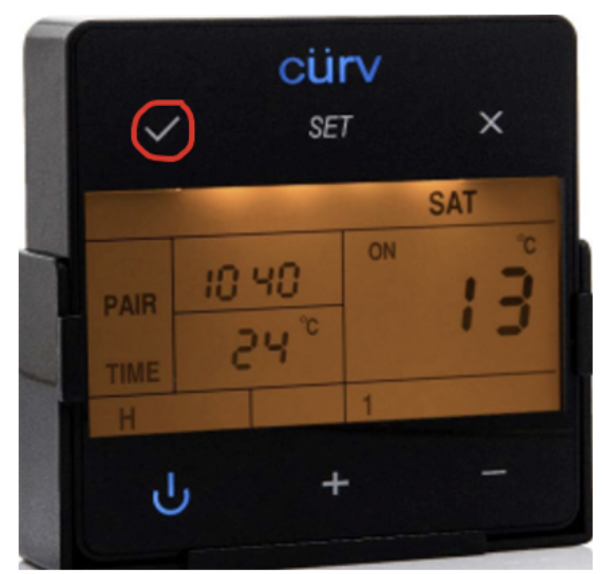

 To Pair the Wireless Room Thermostat

 1. Install 4 x AAA batteries in the room thermostat. (Recommended Lithium Battery).

2. Press the T button on the side of the Cürv Heater that you want to pair for 2 seconds so that it lights up green.

3. Press the until you reach the pair option.

4. Press Set.

5. Choose which number (which will be flashing in the bottom right of the screen) that you wish to allocate the heater to by using the +/- buttons.

6. Then press the to accept.

7. When the number stays on the screen the heater is now paired to the room thermostat.

8. To cancel pairing hold X for 4 seconds.

9. You can pair up to 8 heaters to one thermostat if required

 To Un-pair A Heater From A Room Thermostat

1. Press the until you reach the "PAIR" option.

2. Press Set.

3. Choose which heater number that you wish to remove by using the +/- buttons. (this will be flashing in the bottom right of the screen)

4. Then press the X to remove that heater.

Set time and date on Thermostat

 (Note. If you are using the Cüry Smart App the time and date will automatically be updated.)

1. Press the until you reach the “TIME” option.

2. Press Set.

3. Use '+' and '-' to select the Day.

4. Press

5. Use '+' and '-' to select the Hour.

6. Press

7. Use '+' and '-' to select the Minutes.

8. Press for 3 seconds to save

9. Press X to exit. (If no buttons are pressed for 10 seconds, it will automatically exit.

Program a Heating Schedule on Thermostat

 1. Press the ✔ Button until you reach the “PRG” option.

 2. Press Set.

3. Use '+' and '-' to select the Day.

4. Press✔

5. Use '+' and '-' to select the ON Hour.

6. Press ✔

7. Use '+' and '-' to select the ON Minutes.

8. Press ✔

9. Use '+' and '-' to set the Temperature.

10. Press ✓

11. Use '+' and '-' to select the OFF Hour.

12. Press ✓

13. Use '+' and '-' to select the OFF Minutes.

14. Press✔

15. Repeat Until you have set your temperatures throughout the day.

16. Press "SET" and '+' and '- to change the Day you wish to program. to select and continue from stage 5.

17. Press ✔

18. Press ✔ for 3 seconds to save

19. Press and hold X to exit

 To Set the Child Lock (Safe Surface Temperature)

1. Press the + and - Buttons for 5 seconds.

2. The Lock symbol will now be displayed and the heaters surface will be locked so that it will not exceed 43°C.

3. To Unlock Press + and - for 5 second.

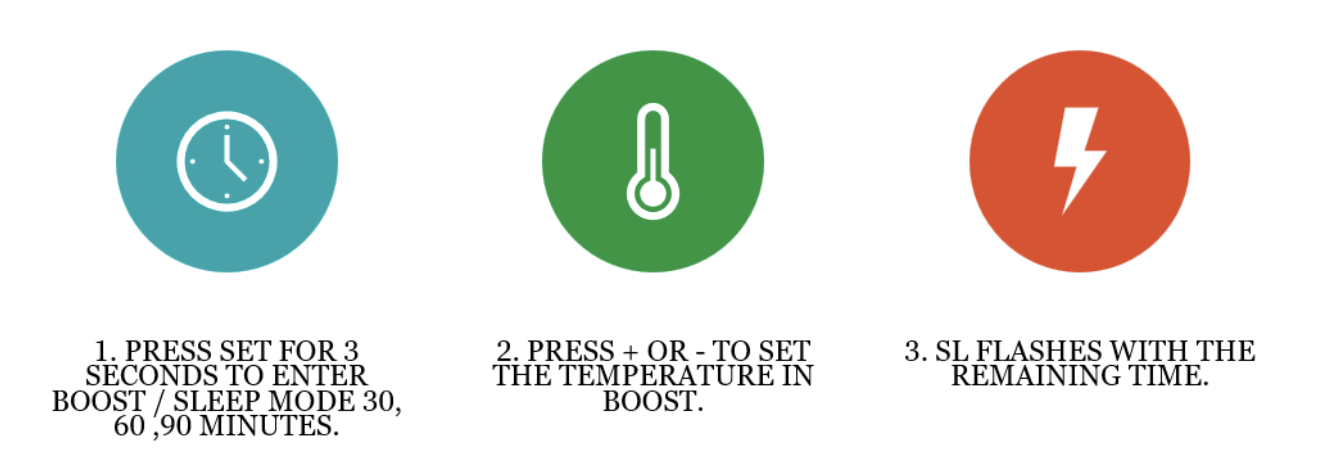

Boost Mode

 Create an area or room with 2 or more heaters

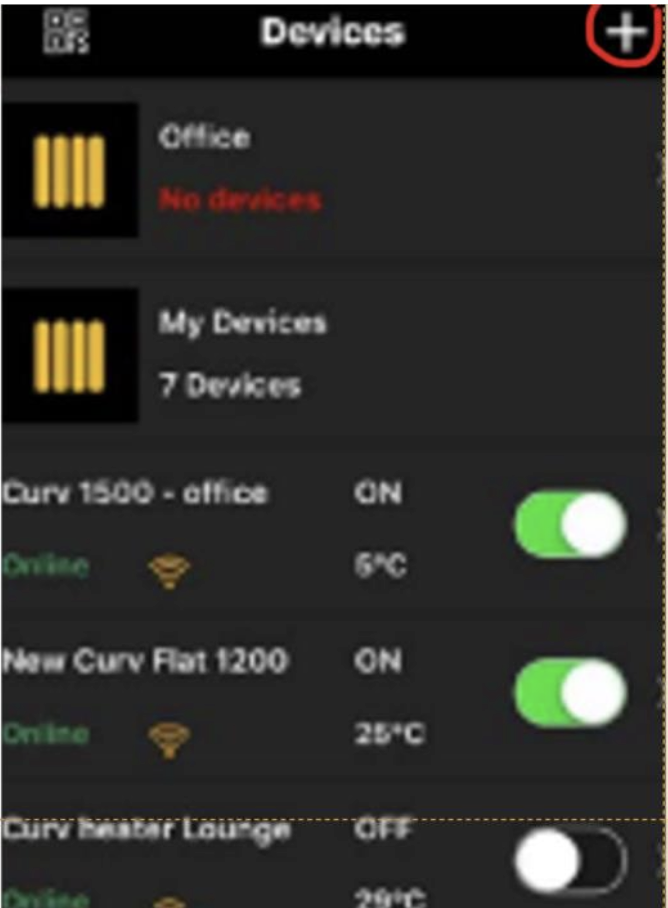

 1. From the main menu page press + (in the top right-hand corner).

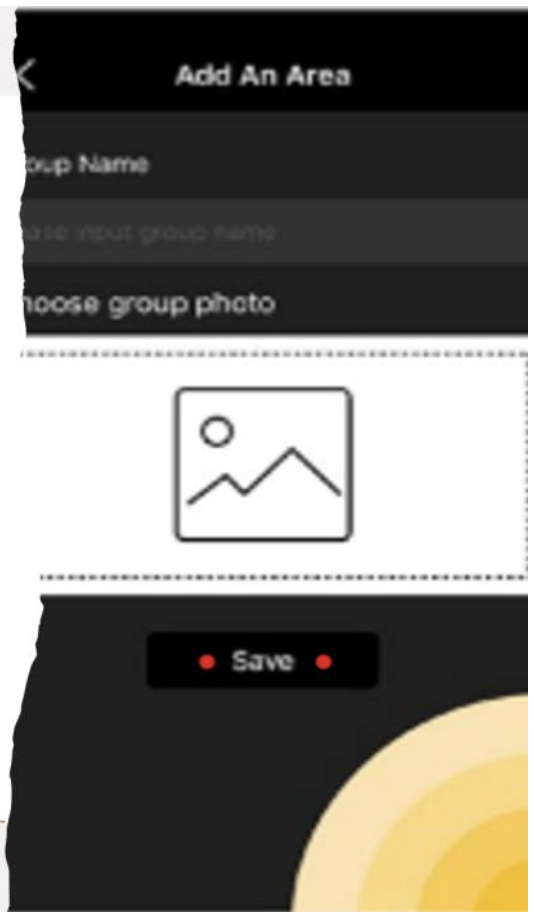

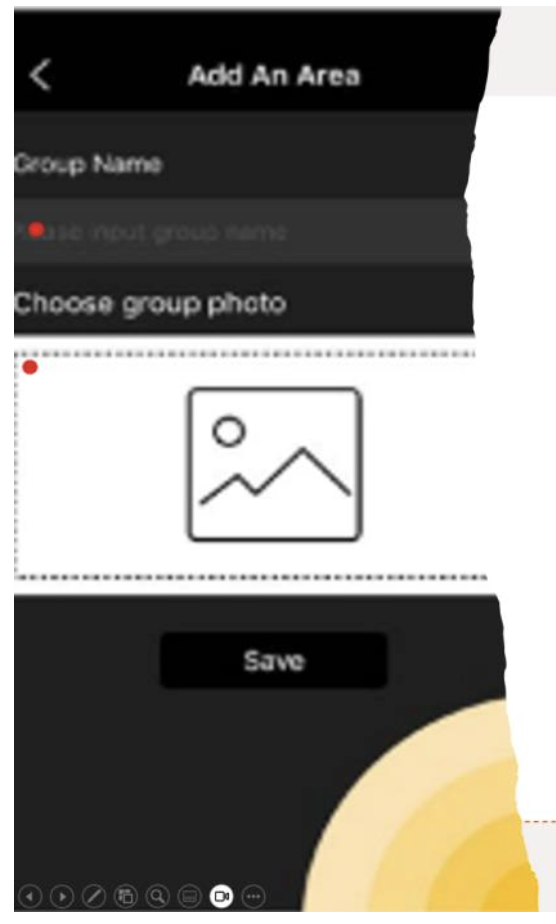

 Name your heaters

Give the group of heaters a name. You can also add a picture if you wish. • Press Save.

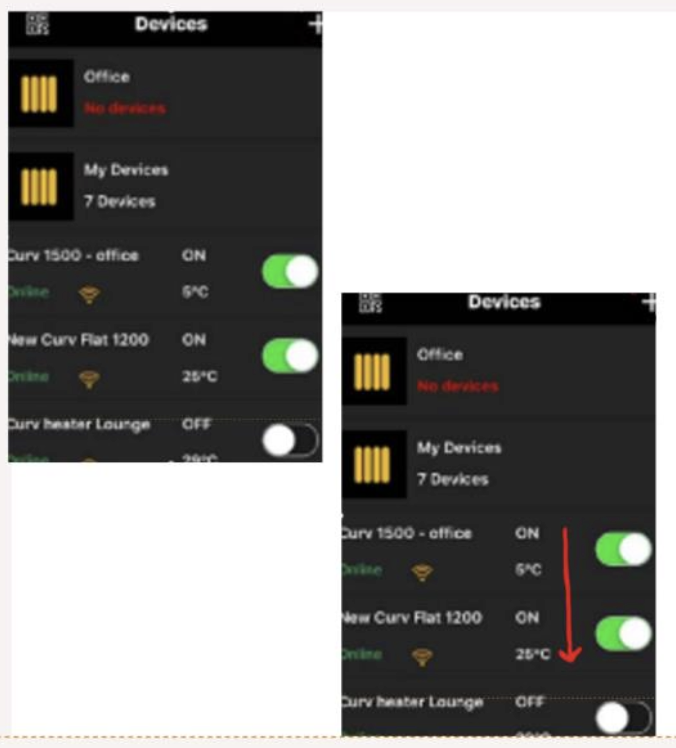

 Select the Heaters

Go to my devices. Scroll down your list of heaters in my devices until you come to the one you wish to move. Select the heater you wish to move into the group.

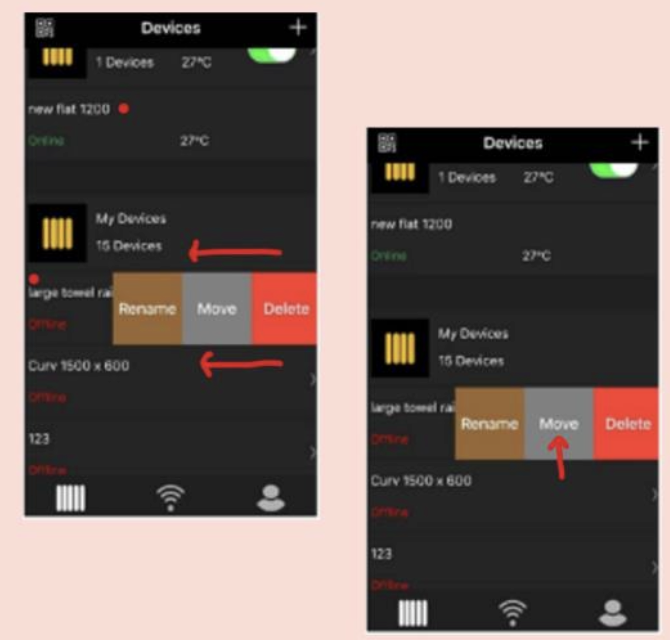

 MOVING YOUR HEATERS

Locate the heater you want to move in the list. Swipe left to reveal menu.

Then select move

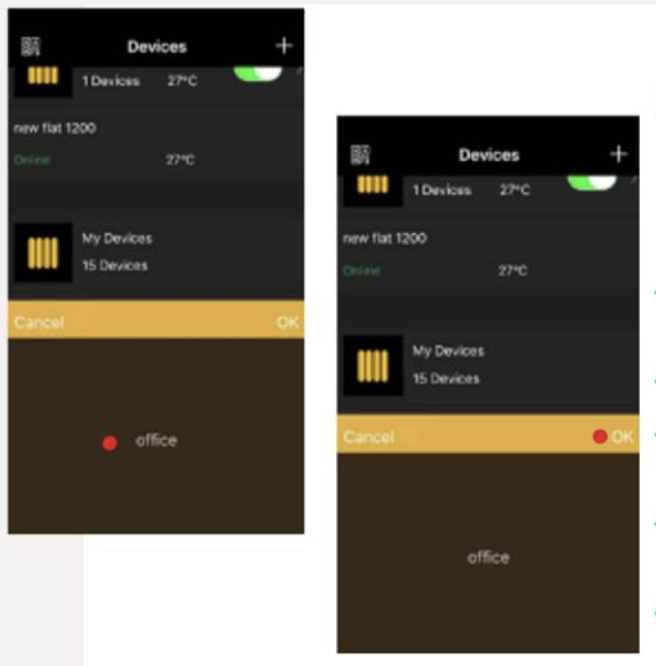

 COMPLETING THE HEATER GROUP/AREA

Select the area you created earlier in the menu. Then select OK.

Your heater will now be showing in the group/ area.

Repeat this process for as many heaters you wish to add into this area.

You will now be able to control all heaters in the area together.

Allow multiple users to control the heater

 Each user must create an account on their device.

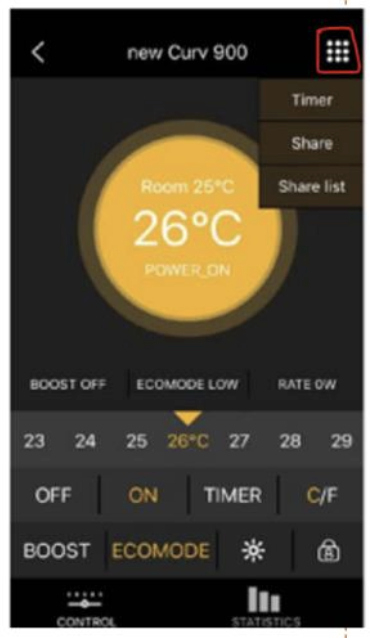

From the original device that paired the heaters, go into the heater control screen.

Then press in the top right-hand corner

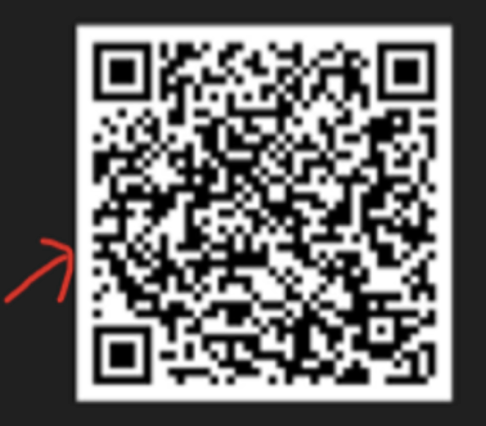

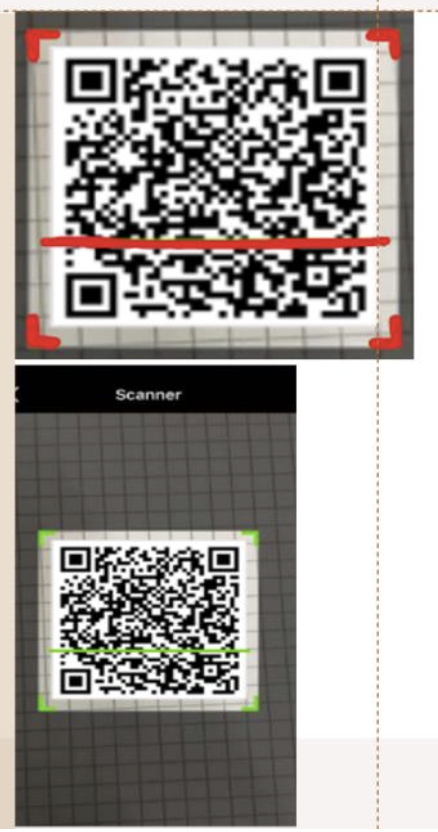

 LOCATING THE QR CODE

Select share. This will display a QR code.

This can then be scanned by the other device you wish to share the heater with

 • On the device you wish to add the heater, select

• Then press to scan the QR Code from the device with the original account

• Please confirm you wish to add the shared heater.

• This will now show in both accounts
