Program Heating Schedule

 TO PROGRAM A HEATING SCHEDULE

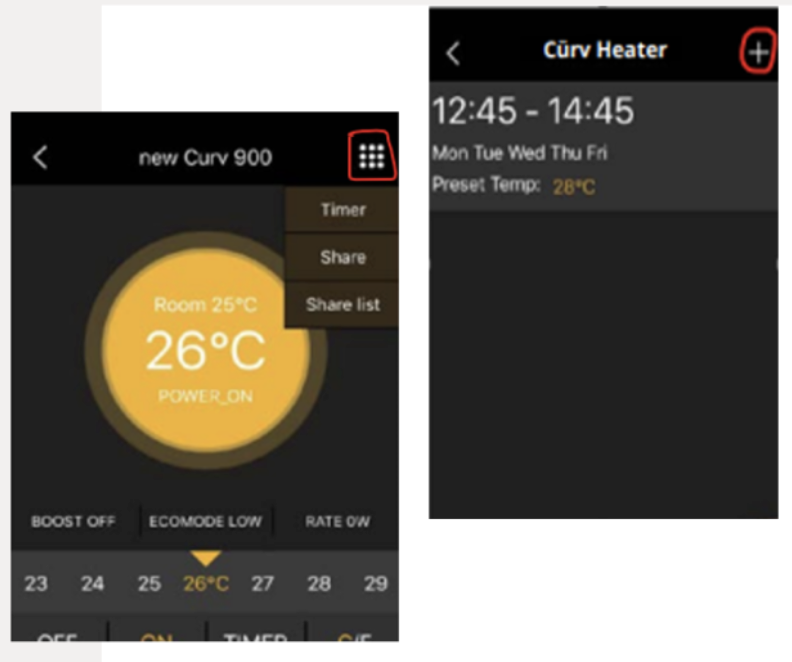

Select the heater or group of heaters you wish to set up the schedule. •

Press(in the top right corner) and selecting timer from the drop- down menu

Then press the + to add a schedule.

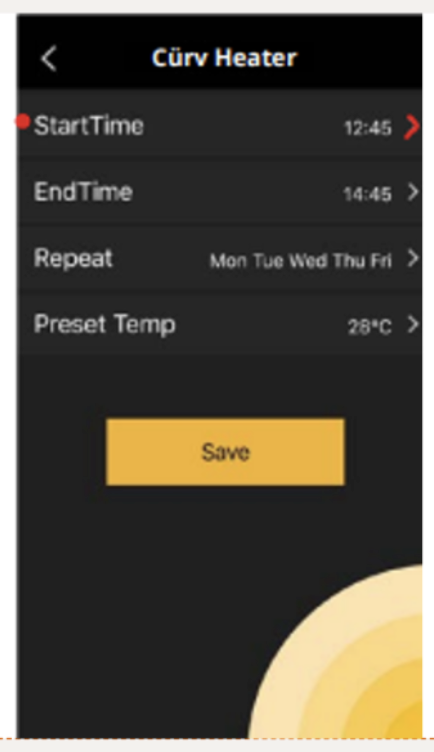

 SETTING START TIMES

To set your start time, click on the arrow on the right of the 'Start Time' tab.

This will open a drop down menu to allow you to select the time you want.

Once you have selected the time you want, go back to this page.

Then set your end time.

 SETTING END TIMES

To set your End time, click on the arrow on the right of the 'End Time' tab.

This will open a drop down menu to allow you to select the time you want.

Once you have selected the time you want, go back to this page.

Then set the days you wish to repeat this schedule

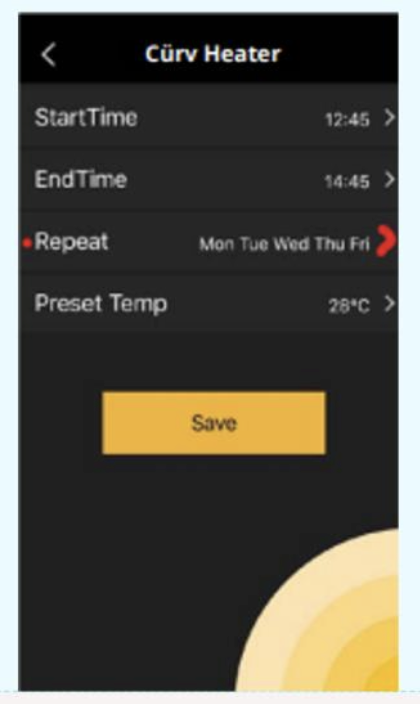

 SETTING THE DAYS FOR YOUR SCHEDULE

To set your start time, click on the arrow on the right of the Repeat' tab.

This will open a drop down menu to allow you to select the days you want.

Once you have selected the days you want, go back to this page.

Then set your temperature.

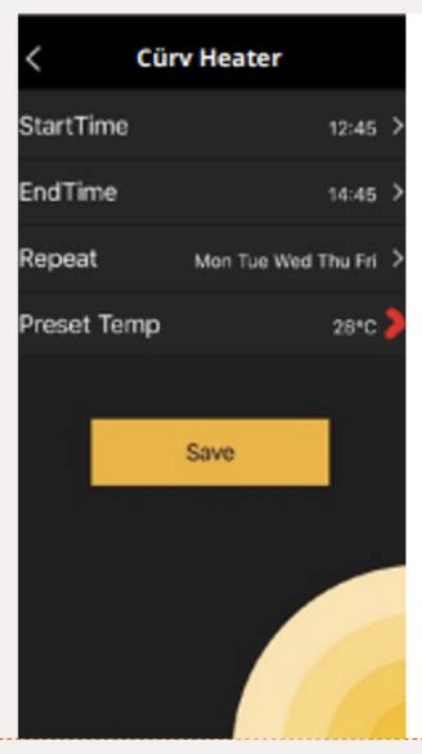

 SETTING THE PRESET TEMP

To set your start time, click on the arrow on the right of the Preset Temp' tab.

This will open a drop down menu to allow you to select the temperature you want.

Once you have selected the temp you want, go back to this page.

Then press 'SAVE'

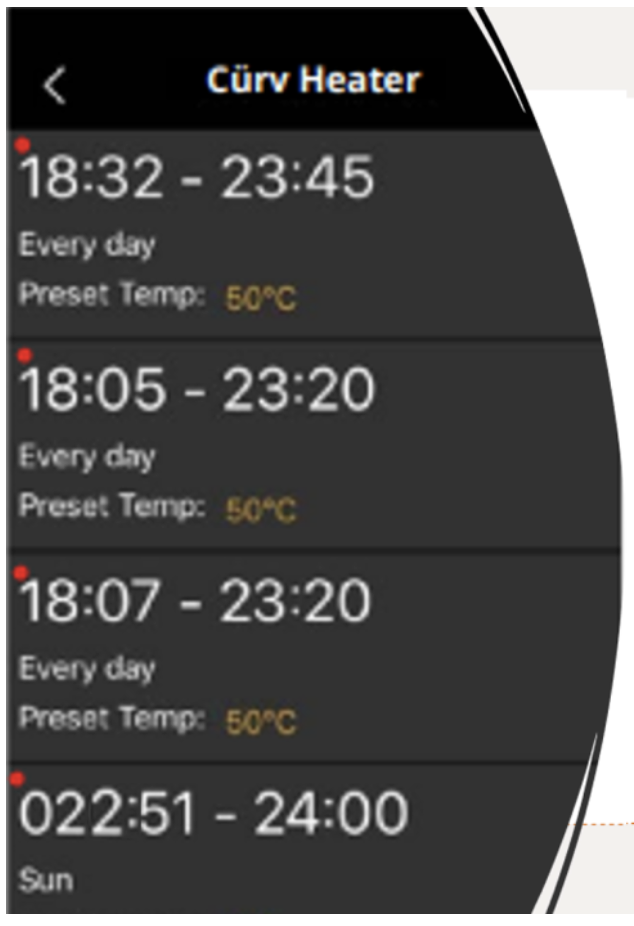

 ADDING FURTHER SCHEDULES

You can repeat this process to schedule different heating temperatures throughout the day.

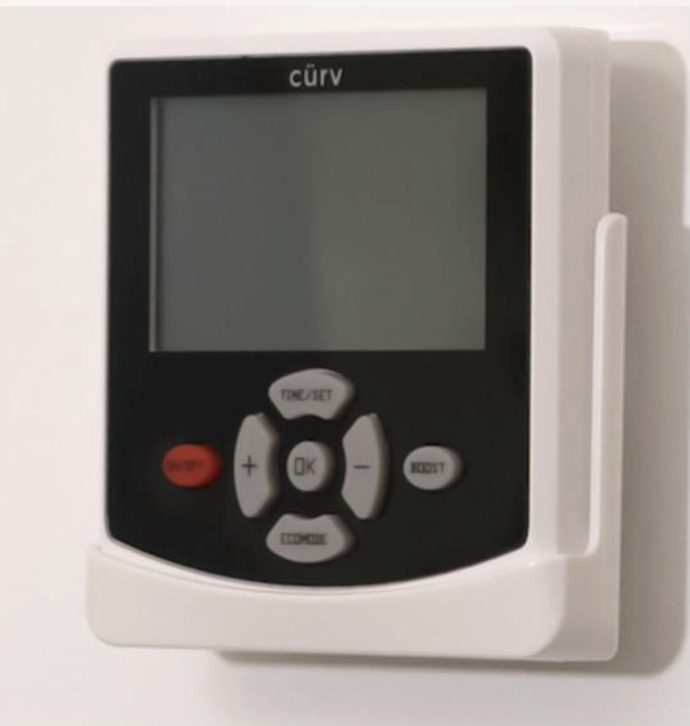

 CURV THERMOSTATS - GEN 2 GETTING TO KNOW YOUR THERMOSTAT

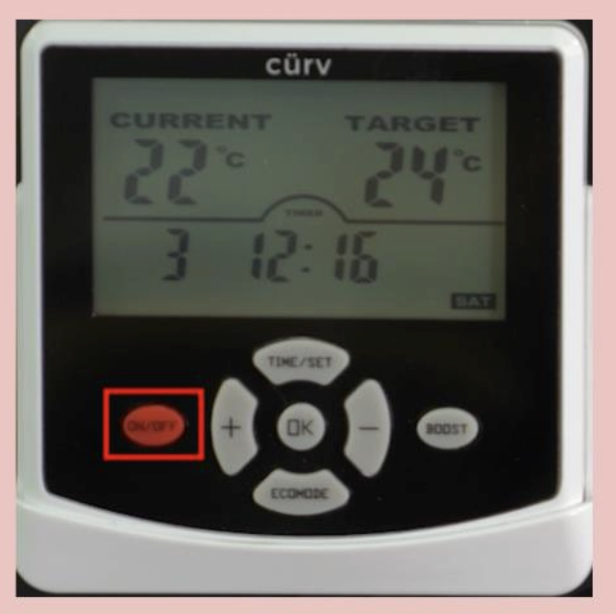

 ON/OFF BUTTON

The On/Off button can be found under the display.

It's the first button, on the far left of the buttons.

In the Gen 2 version 1 thermostats with raised rubber buttons, the on off button will be coloured red as shown.

This button turns the heater on and off.

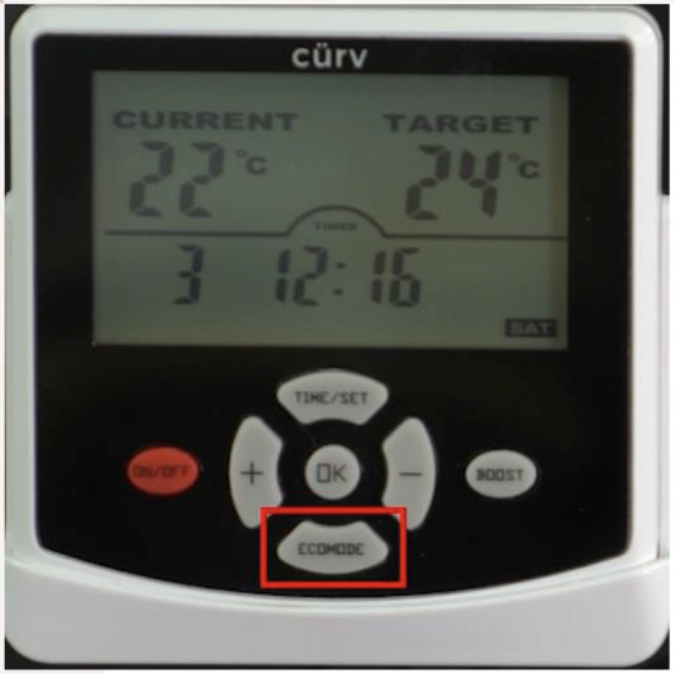

 ECO MODE

The Thermostat also has an ECO Mode which will enable the Thermostat to work on reduced power to save energy.

The button for this is at the bottom of the buttons- marked 'ECOMODE'.

If pressed once, this opens ECO mode 1 which uses 1/3rd of the available power

If pressed twice, this opens ECO mode 2, which uses 2/3rds of the available power

If pressed three times, this opens ECO mode 3, which uses the full amount of power available.

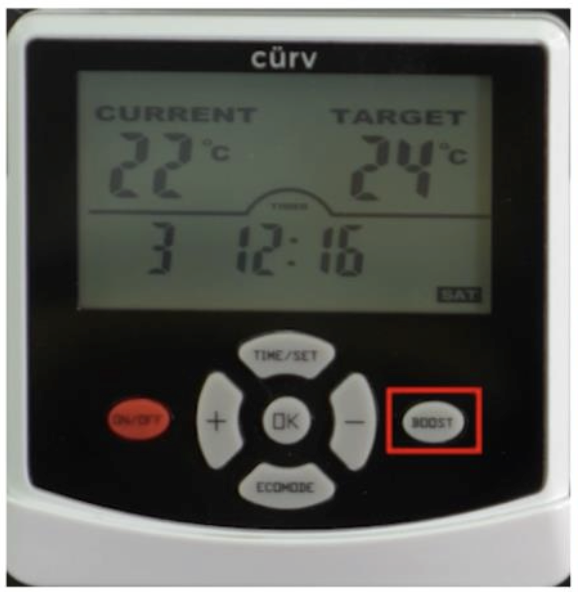

Boost Function

The 'Boost' button can be found at the far right of the buttons - shown marked in red.

It has 4 settings.

Pressing the button 1x makes the boost last 30 minutes.

Pressing the button 2x makes the boost last 60 minutes.

Pressing the button 3x makes the boost last 90 minutes.

Pressing the button 4x turns the boost off.

 PLUS (+) AND MINUS (-) BUTTONS

The '+' and ' buttons can be found on either side of the central 'OK' button - highlighted in red.

These buttons can be used to increase/decrease temperature.

They can also be used to scroll through and confirm function options.

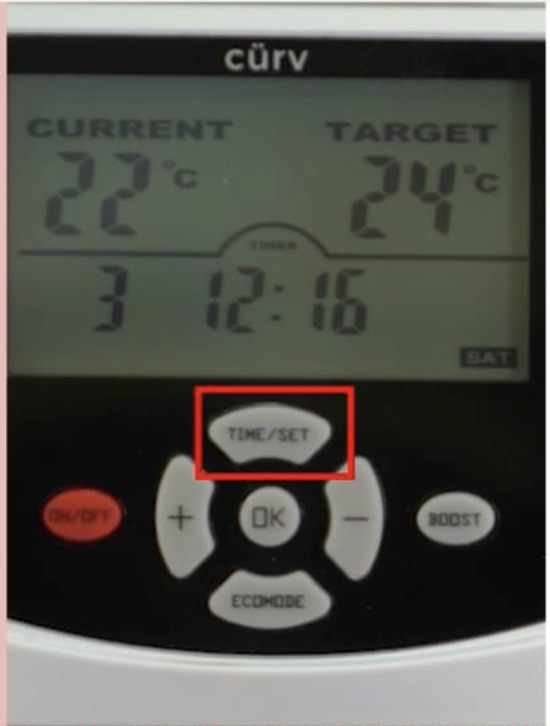

 TIME/ SET FUNCTION

The Time/Set' button is the top button, directly under the LED display - as shown in red.

This button can be used to access the 'Programme' function or the 'Time' function.

To access the 'Programme' function, press and hold the button for 3 seconds.

To access the 'Time' function, press and hold the button for 5 seconds.

 TIME DISPLAY

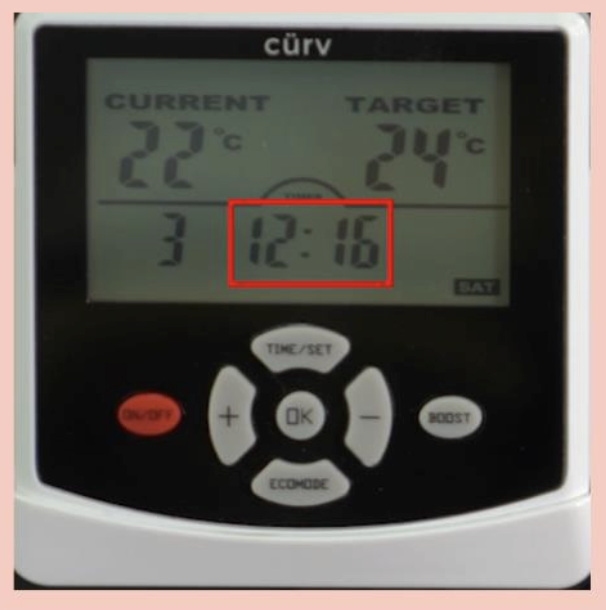

The Time is displayed at the bottom of the LED display - shown here in red.

The instructions on how to adjust the time will be shown in later slides.

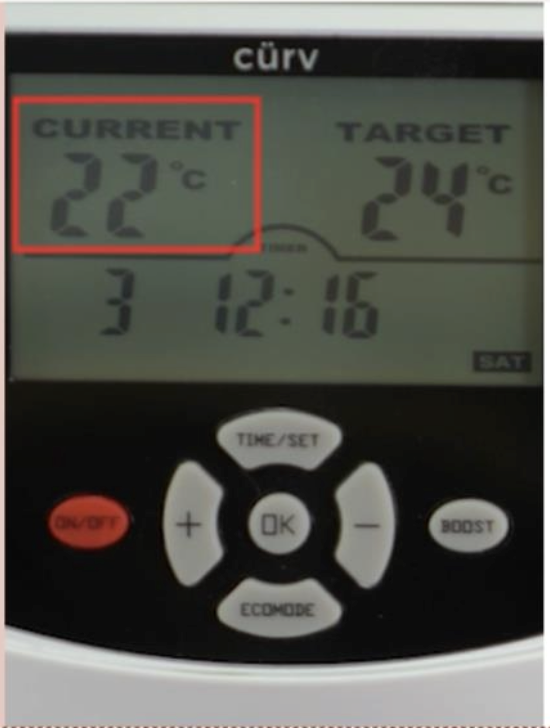

 CURRENT ROOM TEMPERATURE DISPLAY

The 'Current' room temperature is shown in the top left-hand corner of the LED display.

This is shown highlighted in red.

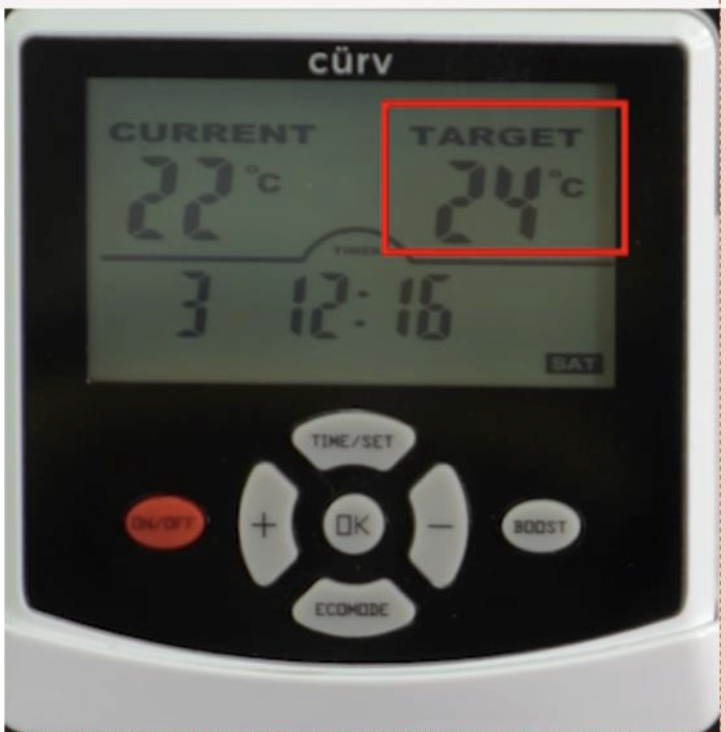

 TARGET ROOM TEMPERATURE

The 'Current' room temperature is shown in the top right-hand corner of the LED display.

This is shown highlighted in red.

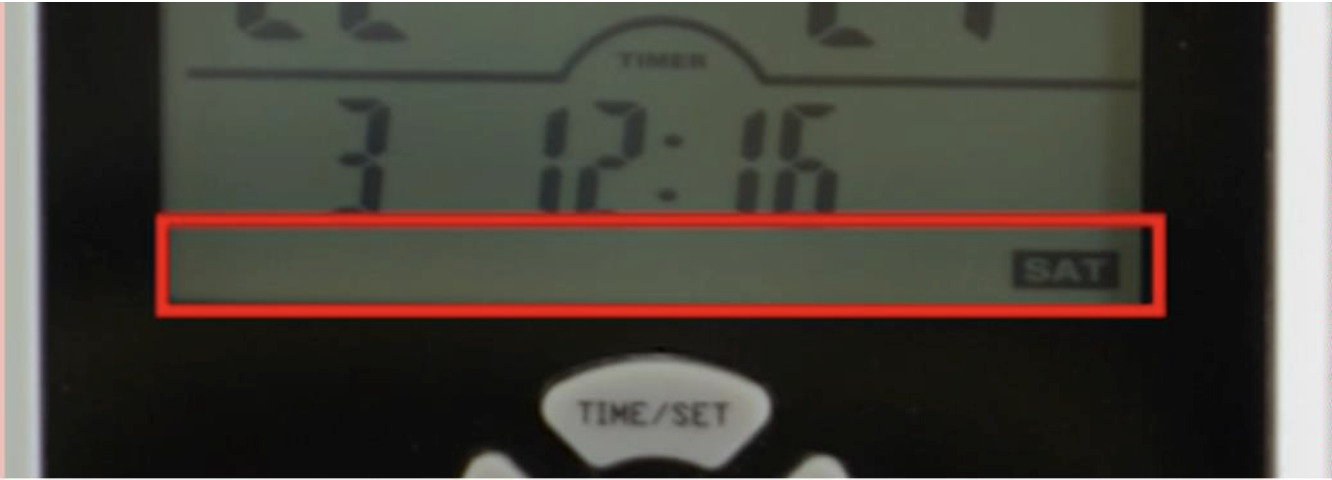

DAYS OF THE WEEK DISPLAY

The days of the week are shown along the bottom of the LED screen.

This is shown highlighted in red

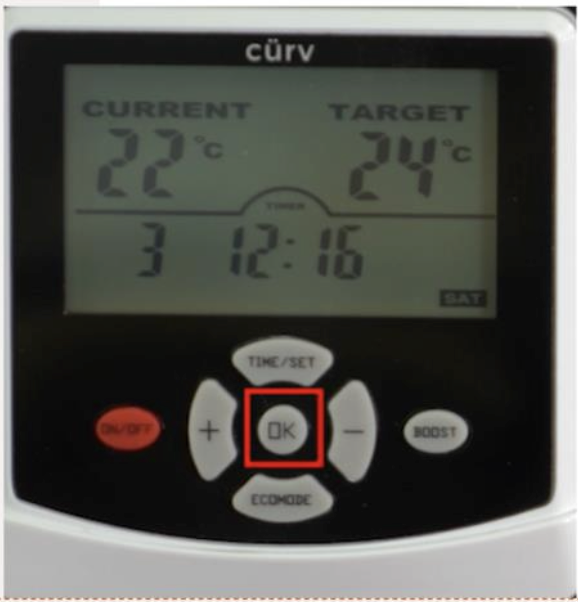

THE OK BUTTON

 The 'OK' button is found underneath the LED screen, in the middle of all the other buttons.

This is shown highlighted in red.

The 'OK' button will confirm your choices.

Press this, once your selections have been made, to save your choices.

Connect heater to thermostat

POWERING ON

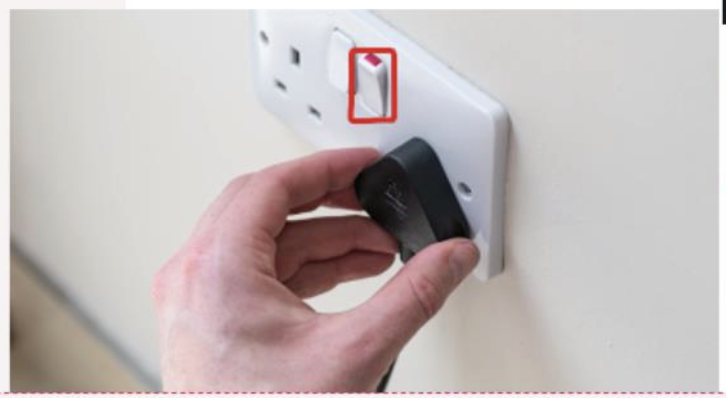

 Plug the infra red panel into the mains.

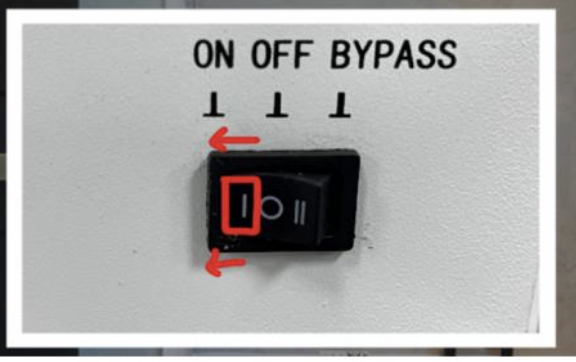

Then power on. Ensure switch on the back of the infrared panel is set to 'ON' position as shown.

 PUTTING THE HEATER IN PAIRING MODE

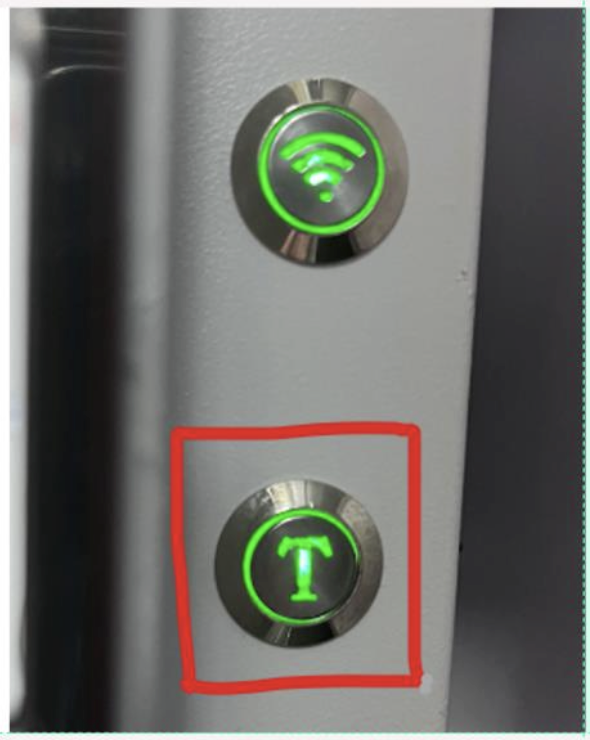

Underneath the Wi Fi button, there is a 'T' shaped button as shown by a red square.

Hold the 'T' shaped button until there is a solid green light. .

The heater is now in pairing mode

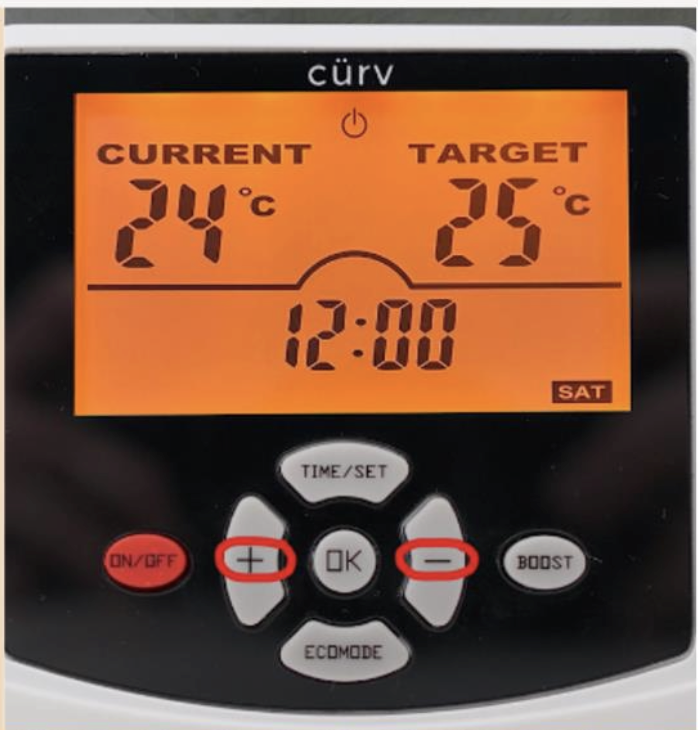

 WAKING UP THE THERMOSTAT

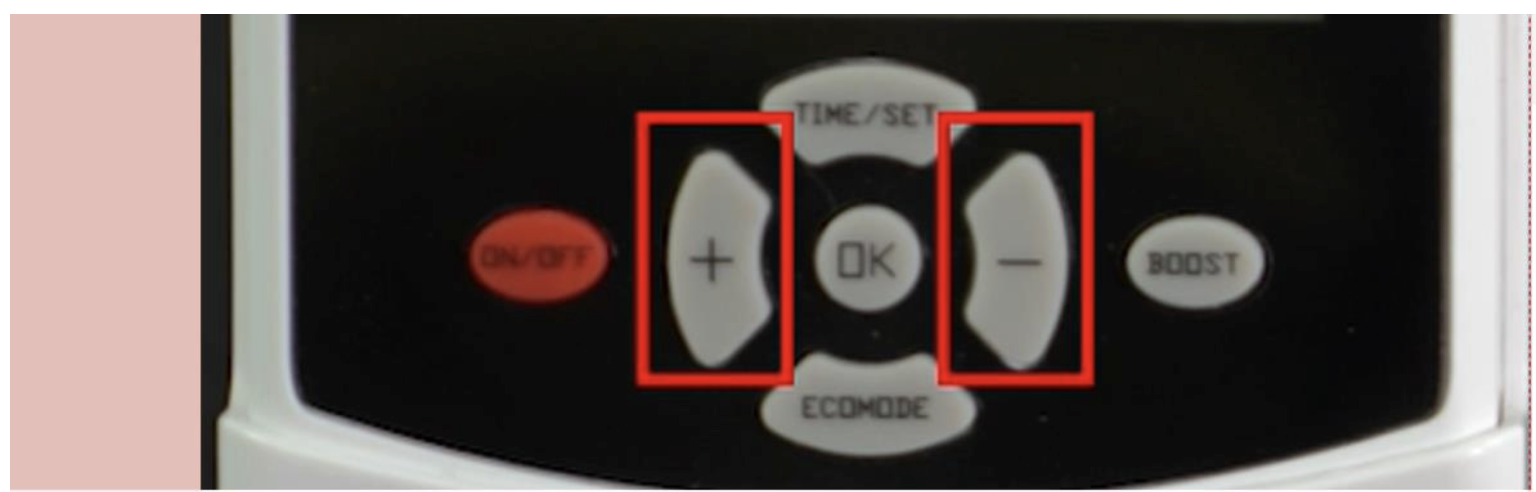

Press either the '+' or '-' button- circled in red- to wake up the thermostat.

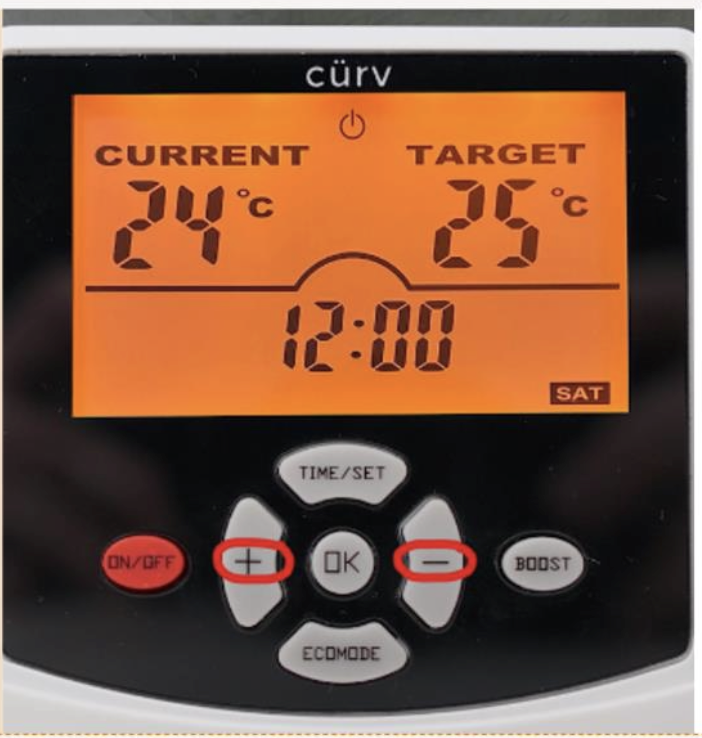

 WAKING UP THE THERMOSTAT

Press either the '+' or '-' button- circled in red - to wake up the thermostat.
