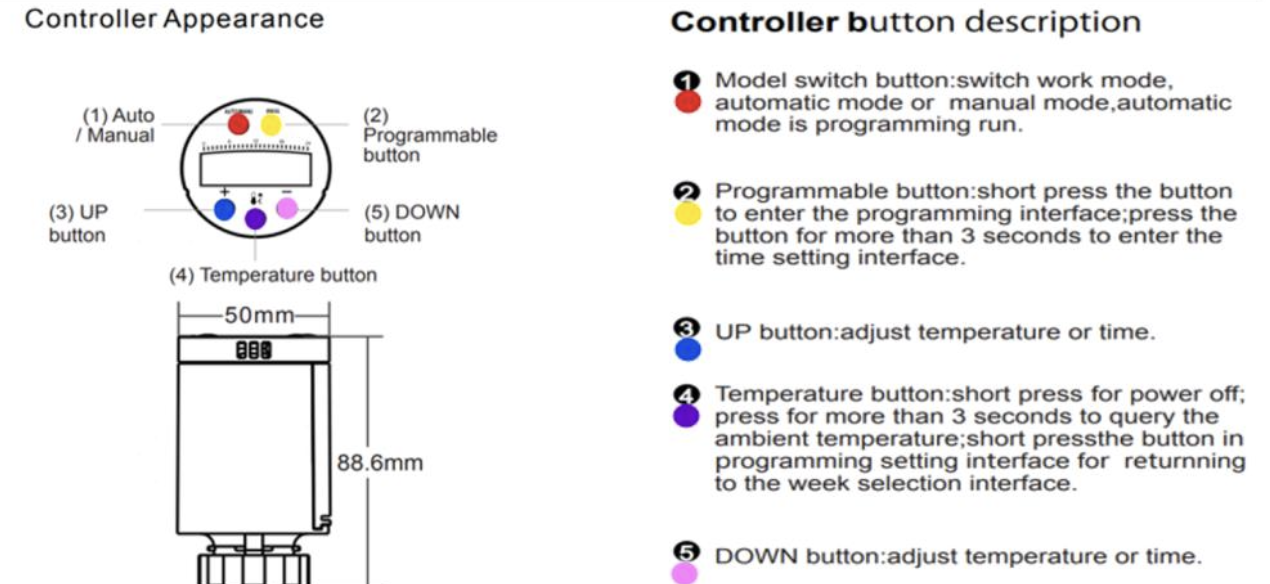

CONTROLLER BUTTONS

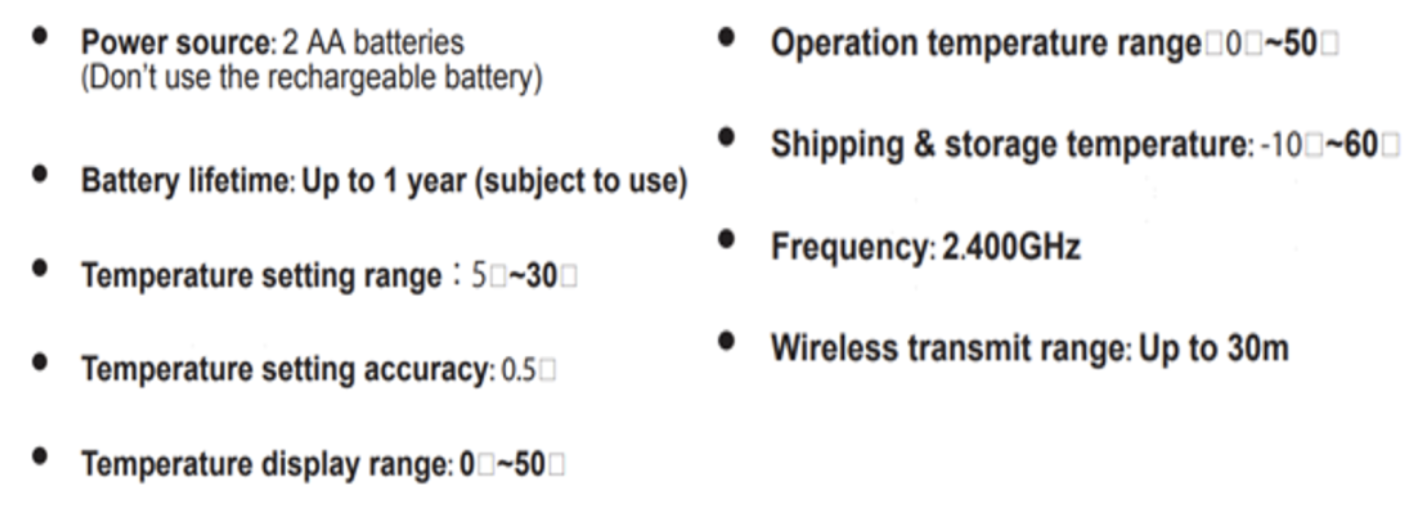

CONTROLLER SPECIFICATIONS



CONTROLLER POWER METHOD

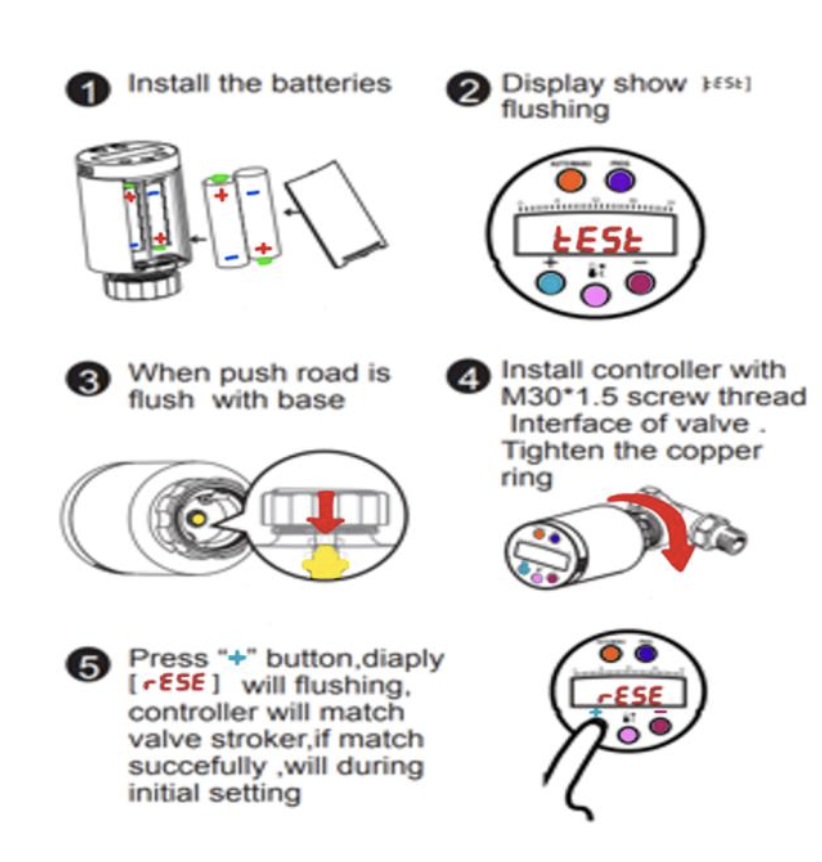

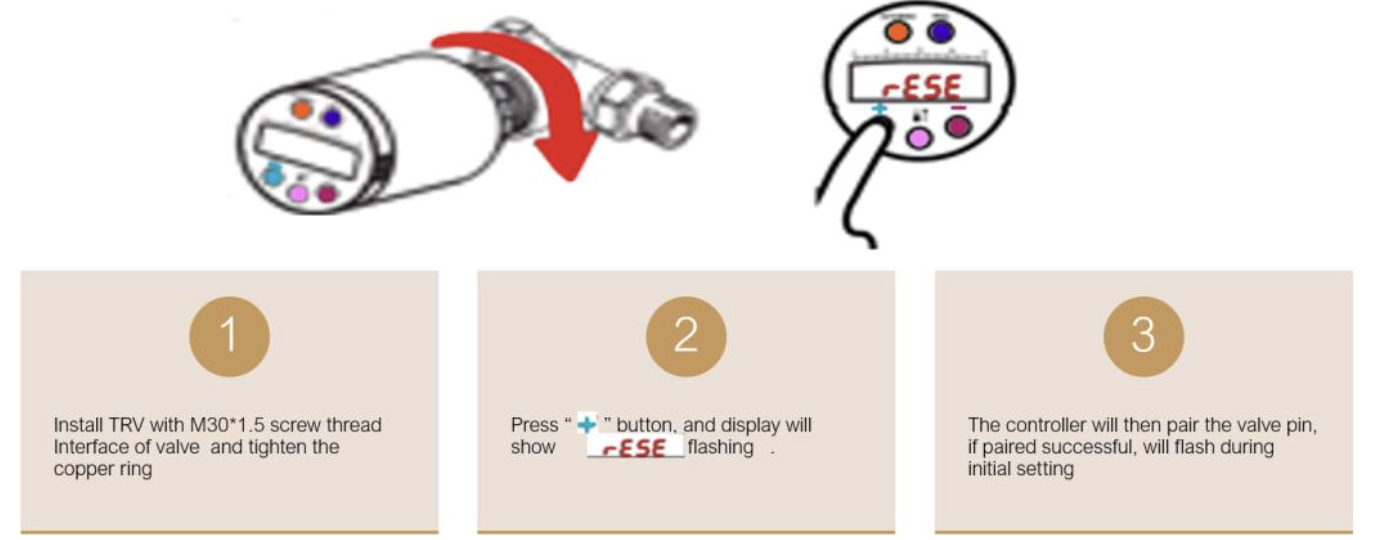

CONTROLLER INSTALLATION

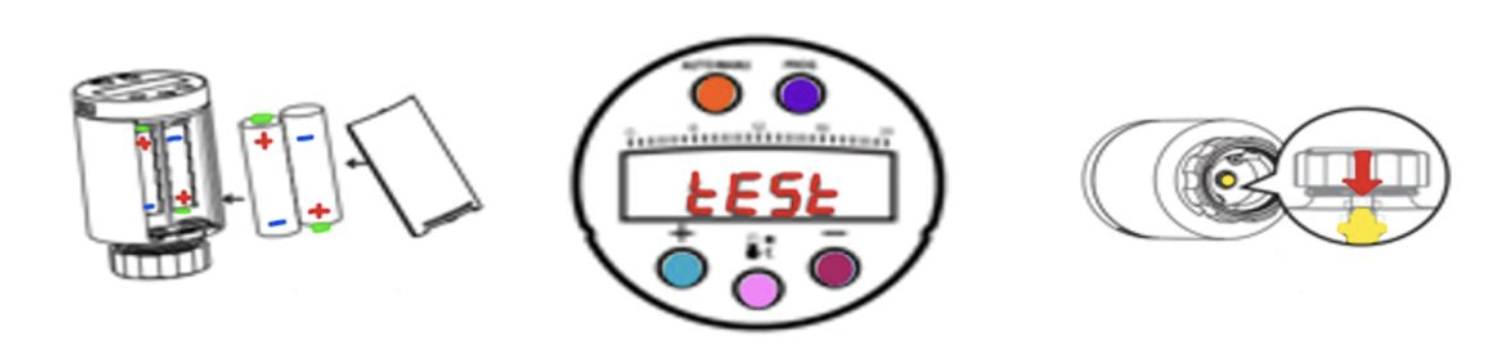

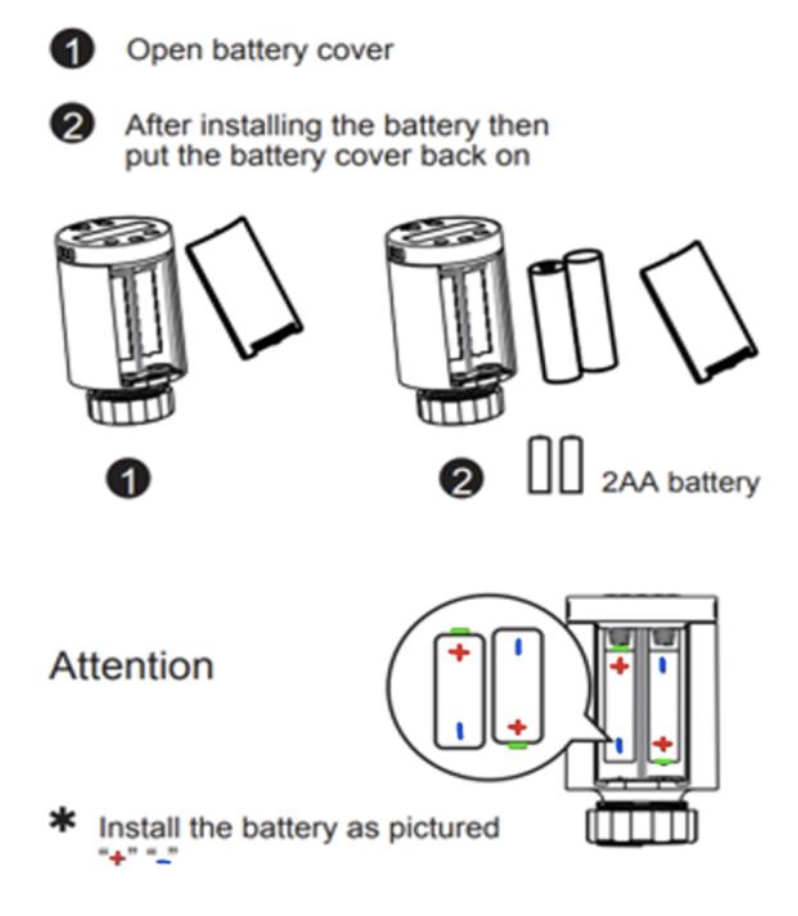

 Install the batteries as shown.

Display will start flashing

Gently push rod in until it is flush with the base





RESETTING PAIRING

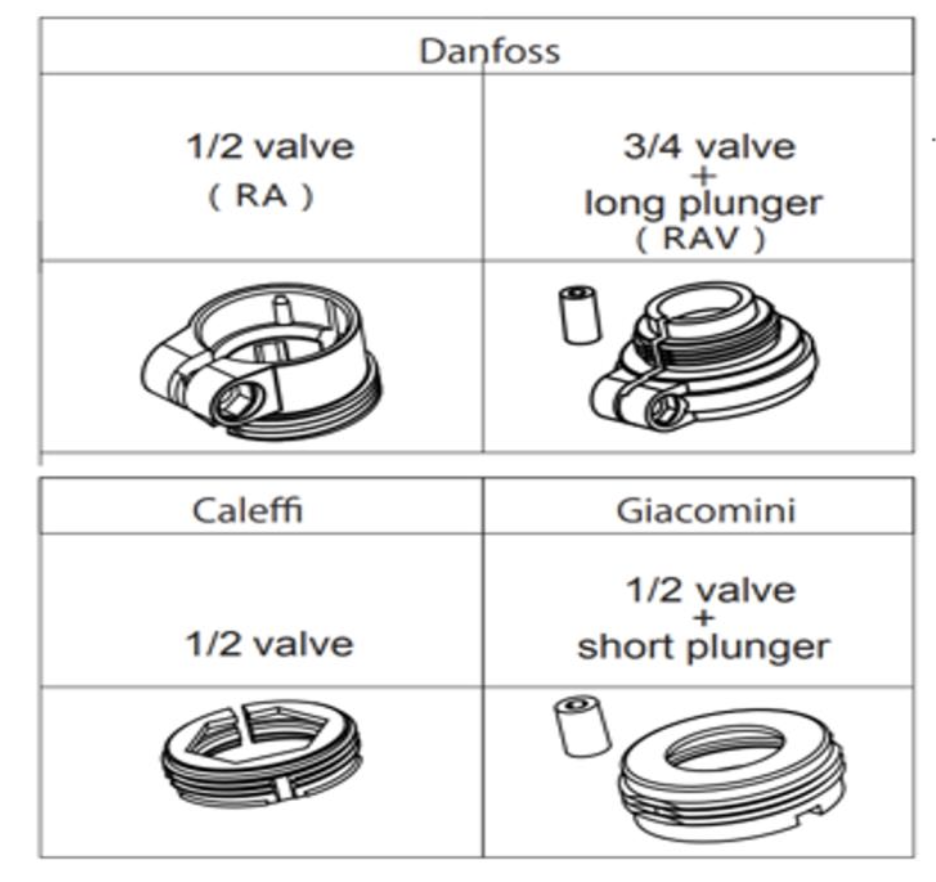

ADAPTER SELECTION
