Creating & Saving Schedules

 HOW TO CREATE A SCHEDULE FOR YOUR CURV TRV

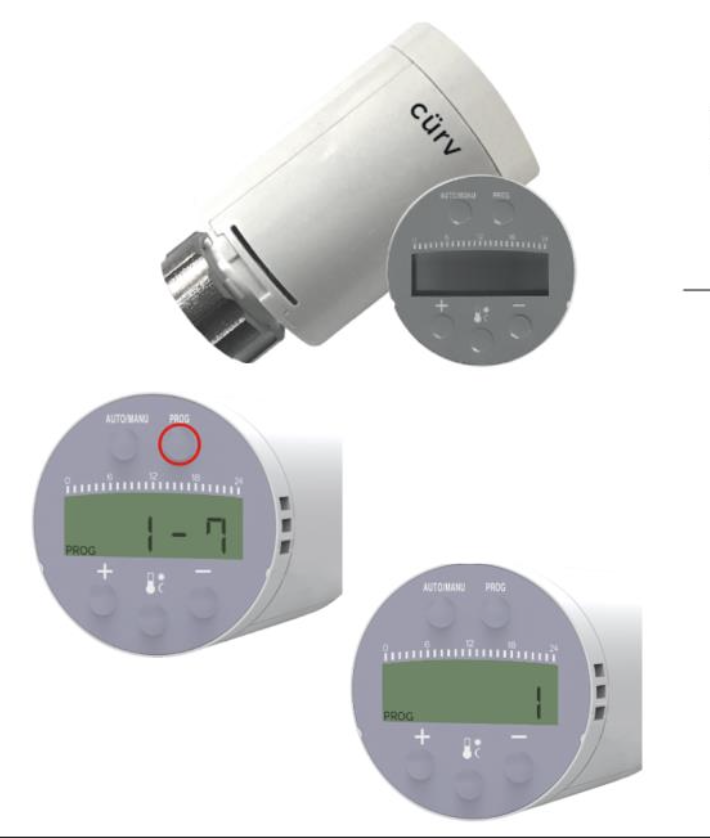

Press the PROG button until the TRV displays 1-7, this will indicate a weekly Schedule: Monday (1) - Sunday (7).

Every day will be set to the same schedule.

If you don't want to use the same schedule all week, press the 'plus' button until you see the number that relates to the day within the week.

 CREATING SCHEDULE 1

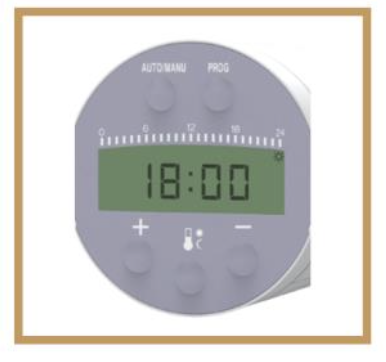

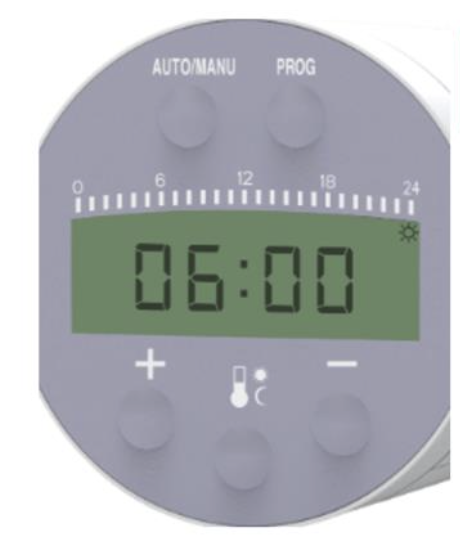

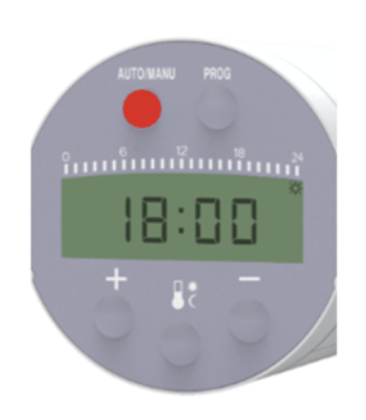

The time flashing on the screen will be the start time for Schedule 1.

You can set two schedules per day.

The time can be adjusted by pressing the + & -button, when you're happy with your decision proceed by pressing the PROG button.

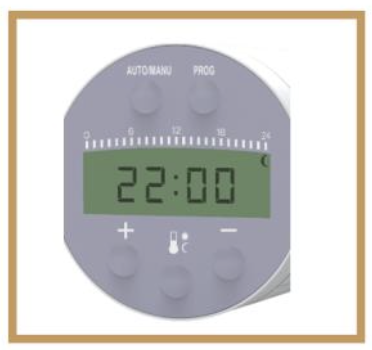

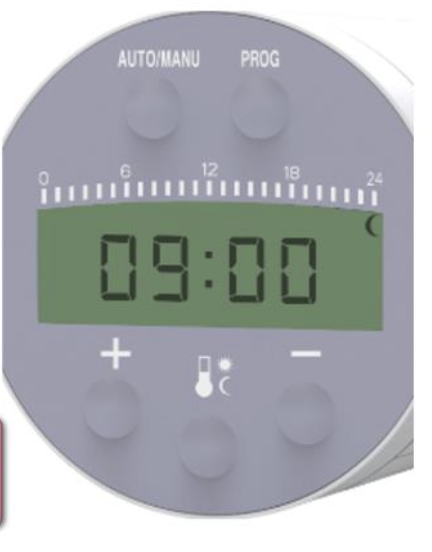

The second time on the screen will be the end time for Schedule 1. 24

 CREATING SCHEDULE 2

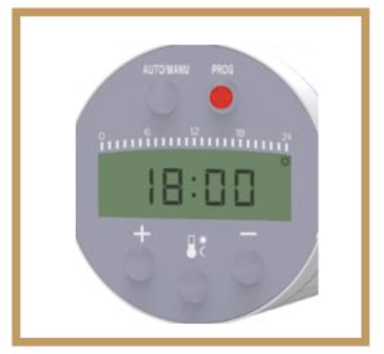

 The time flashing on the screen will be the start time for Schedule 2.

The time can be adjusted by pressing the +&-button, when you're happy with your decision proceed by pressing the PROG button.

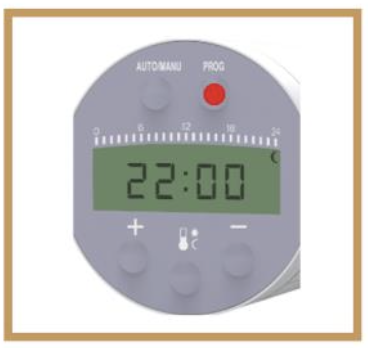

The second time on the screen will be the end time for Schedule 2.

 Continue onto day 2 (Tuesday) where you can follow the previous steps to adjust the schedule.

 SAVING YOUR SCHEDULE SETTINGS

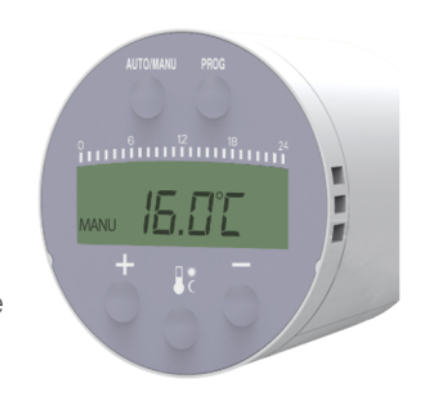

Once you have successfully configured the schedule, ensure that auto mode is on, by pressing the 'AUTO / MANU' button.

You will need to be on auto mode for the schedule to initiate.

Finally, set the temperature you wish to achieve when the schedule is active.
