Alarm System Settings

Sirens

Both the internal and external sirens should be pre-paired to the system. The Internal siren simply needs plugging into a 3 pin UK socket.

The External siren needs to be switched on before it can be used, remove the small screw from the bottom of the external siren and then remove the back plate away from the front cover.

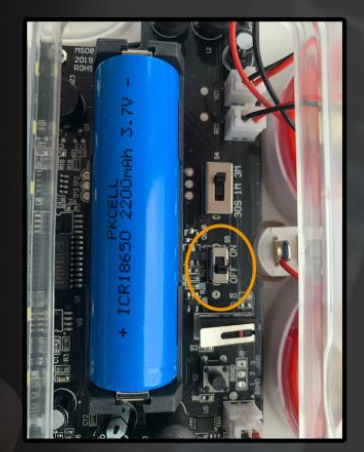

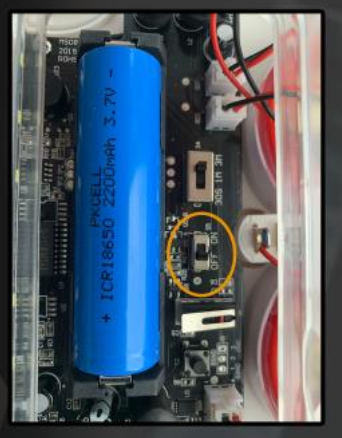

Next to the battery you will see an on/off Switch switch this to the on position and then also select how long you'd like to siren to activate for should it be triggered, move the switch to either 30s, 1m or 3m.

Should the sirens need repairing to the system, simply press the reset button on the siren, which for the internal siren it's the bottom button, for the external siren its to the left hand side of the on/off switch.

Hold the reset button for 5 seconds, which will reset the siren. Then press the reset button once which will put it into pairing mode. Then within 5 seconds press the arm button (locked padlock icon) on the main panel. Listen for the audible sound which confirms the connection.

You can test if the sirens are working by pressing the SOS button which will sound all sirens.

Installation Notes

Things to note during installation.

Please note, that when a PIR sensor is triggered more than twice within 3 minutes, it will switch to a battery saving mode. If no movement is then detected within the next 3 minutes, the sensor will then switch itself back on.

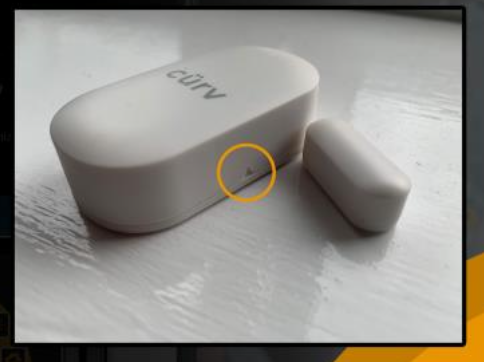

Please note, that for the Door/Window contacts to function properly, you must make sure the smaller part of the contact is next to the small triangle on the larger part of the contact. If the smaller half is on the wrong side, the detector will not operate correctly.

Should you need any further help please drop us an email at contact@curv360.com and someone will get back to you as soon as possible.

Sirens

Both the internal and external sirens should be pre-paired to the system. The Internal siren simply needs plugging into a 3 pin UK socket.

The External siren needs to be switched on before it can be used, remove the small screw from the bottom of the external siren and then remove the back plate away from the front cover.

Next to the battery you will see an on/off Switch switch this to the on position and then also select how long you'd like to siren to activate for should it be triggered, move the switch to either 30s, 1m or 3m.

Should the sirens need repairing to the system, simply press the reset button on the siren, which for the internal siren it's the bottom button, for the external siren its to the left hand side of the on/off switch.

Hold the reset button for 5 seconds, which will reset the siren. Then press the reset button once which will put it into pairing mode. Then within 5 seconds press the arm button (locked padlock icon) on the main panel. Listen for the audible sound which confirms the connection.

You can test if the sirens are working by pressing the SOS button which will sound all sirens.

Note: All products need be charged for 24 hours before use

Alarm System Settings

3 Features

Works with GSM and Internet Connection (Wi-Fi Connection)

Supports up to 10 remote controls, 60 wireless accessories and 30 RFID tags

Can store up to 5 phone numbers & 5 SMS numbers

Arm/disarm the system by SMS, phone call, or App (on iOS or Android)

Notifications sent in case of alert and system status change - SIM card slot: stay connected even where you don't have an Internet connection or when your home Wi-Fi network is down (SIM card not included)

Audio surveillance of the site from distance

Can be disarmed by RFID tag

Built-in siren (95dB)

600mAh lithium batteries included for more than 8hours standby mode.

4 Specifications

Product name

 Curv Smart Alarm System

SKU

CURV-ALR01

Power Supply

Input: AC 110-240V/50-60 Hz

Output: DC 12V/1A

Wi-Fi

2.4GHz 802.11 b/g/n

GSM-frequency

GSM:850/900/1800/1900 MHz

Transmission distance

<80M in open space

Backup batteries

Lithium Batteries: 7.4V/600 mAh

Internal siren

95dB

Housing material

ABS plastic

Operating conditions

Temperature:-10°C~55°C

Humidity: 80% (non-condensing)

Control panel dimensions (LxWxH)

 188 x 125 x 25 mm Radio-frequency 433MHz

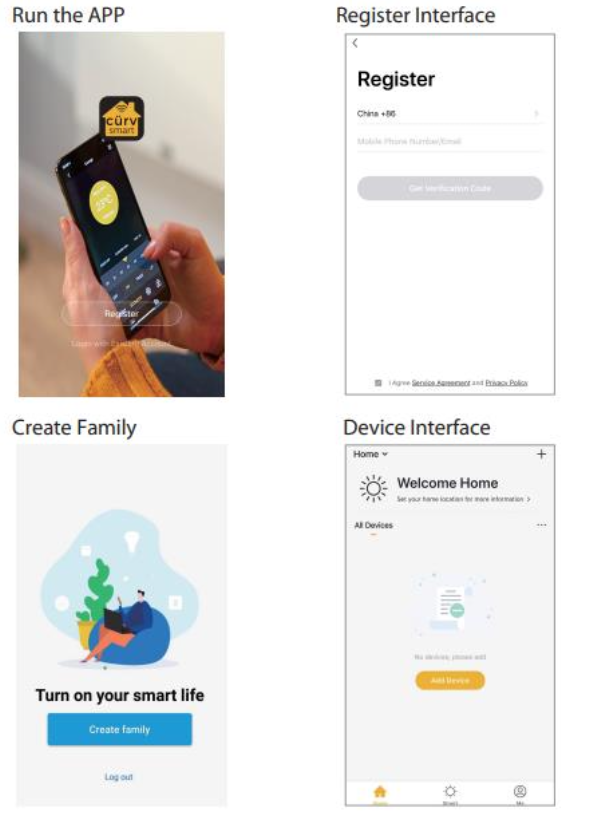

5 Registering an account

5.1 Download APP "Curv Smart" on your smart phone. The app is available on the App Store and Google Play.

5.2 Run and install the APP on your smart phone.

5.3 Register by your Mobile number/e-mail address.

5.4 Login and create a family.

6 Connect the Alarm to APP

There are two way to connect the alarm to APP: EZ and AP mode, please use AP mode if you are struggling then use EZ mode.

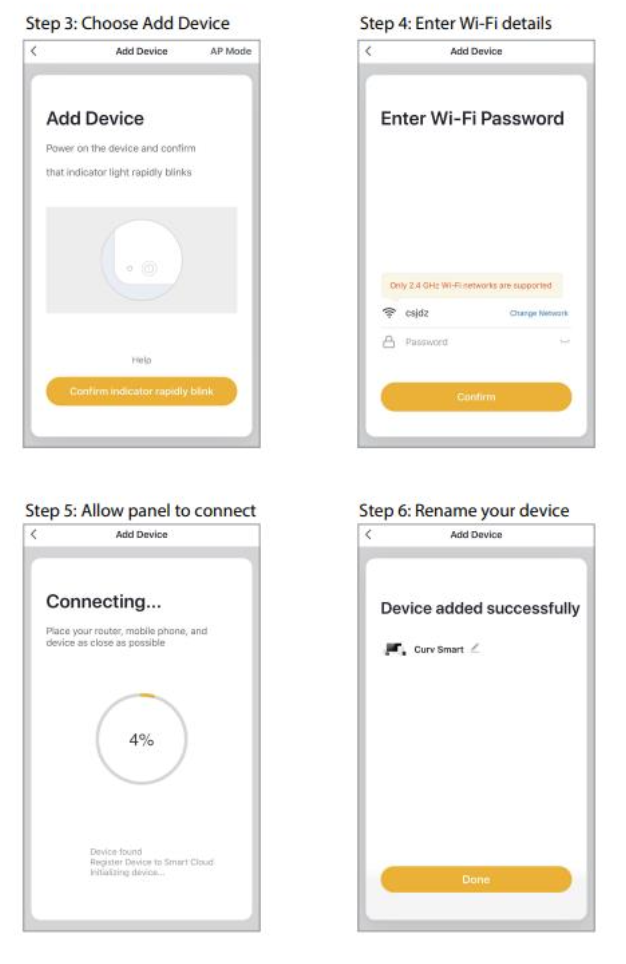

6.1 To connect in EZ mode

Enter Wi-Fi EZ Mode: Admin code123456+ connection button - Ensure the system is disarmed before this operation, after enter Wi-Fi EZ mode, the LCD display "Wi-Fi EZ mode", now your alarm is ready for network setting.

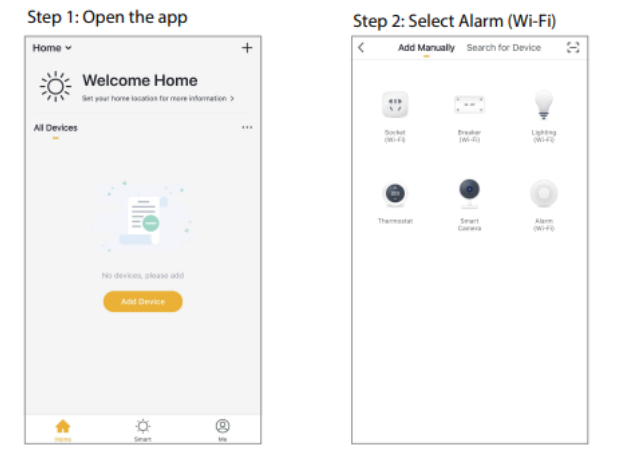

Choose the device which will be add choose"Add device" → "Alarm"in the APP.

Set the Wi-Fi network which will be connect  - Enter Wi-Fi password of the router which the alarm will be connect to, waiting for about 20 seconds to get a response.

Now you can set the alarm name to complete the connection

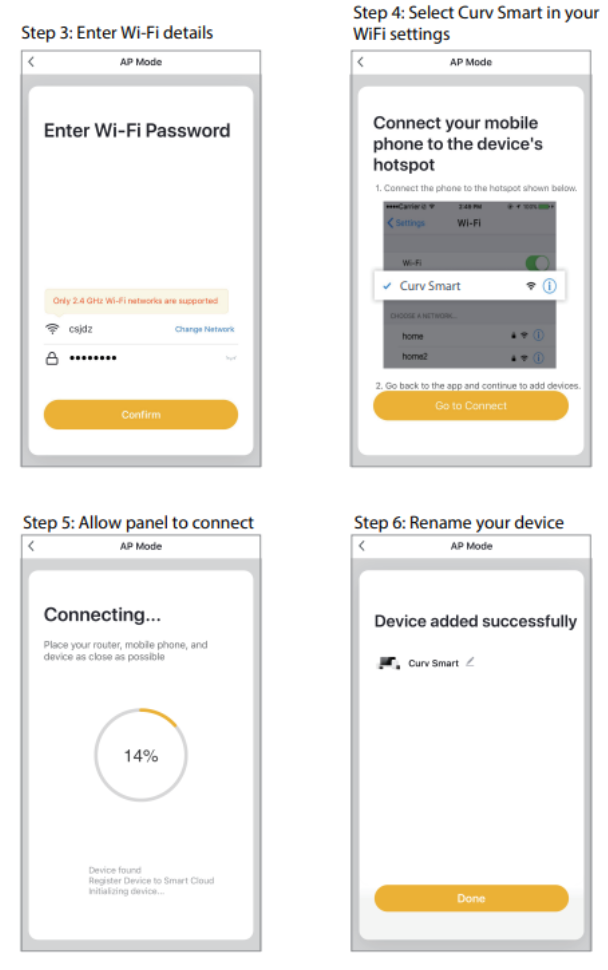

6.2 To connect in AP mode

Enter Wi-Fi AP Mode: In setup menu, choose "Wi-Fi AP mode" Ensure the system is disarmed, type admin code:123456 + Enter button to system setup mode, choose "Wi-Fi AP mode " to enter Wi-Fi AP mode, the LCD display " Wi-Fi AP mode", now your alarm is ready for network setting. -

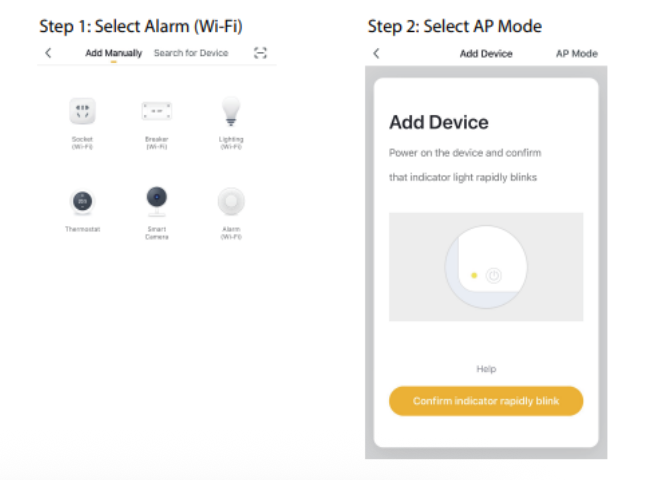

Choose the device which will be add choose" Add device" → "Alarm"in the APP.

Choose 'AP Mode'

Set the Wi-Fi network which will be connect Enter Wi-Fi password of the router which the alarm will be connect to.

Connect the phone's Wi-Fi to the device's hotspot In phone's WLAN list, choose 'CurvSmart' and connect. After connected, return back to the APP, waiting for about 20 seconds to get a response.

Now you can set the alarm name to complete the process.
